Design

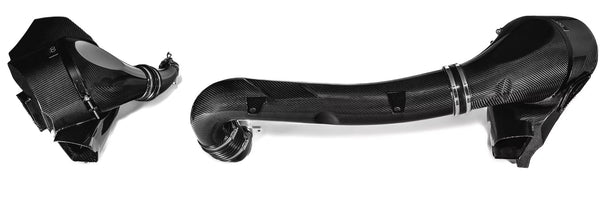

For the G Series M2, M3 and M4 we have taken full advantage of improving the intake system by not just replacing the intake but also the turbo inlets.

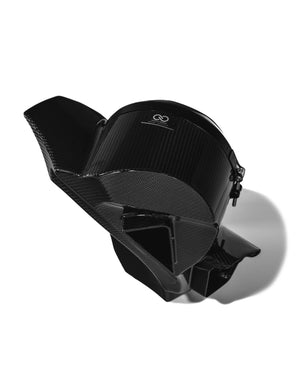

The turbo inlets take their air from enlarged tapered intake tubes which take their air from our bespoke air filters which are housed in fully encapsulated air ducts / filter housings with 3 AIR FEEDS.
The first feed comes from the frontal factory air inlet. The second is a frontal air feed which are located in a region where we tested only ambient air reaches. The third and final feeds are the most interesting.
This design strategy ensures the maximum amount of air at the lowest possible intake temperature. The final result is a stunning under bonnet appearance matched with a more eager and smoother throttle response. More torque available faster and an intake sound which is sophisticated under load.
ENLARGED TURBO INLETS
The flared out turbo inlets are significantly larger than the stock units and are designed to smooth out and increase air speed into the turbo impellers.
TRIPLE AIR FEED

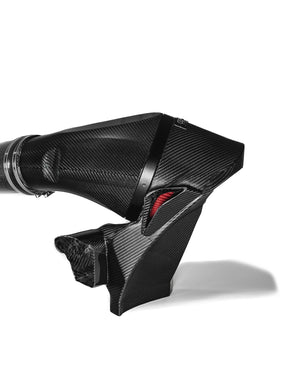

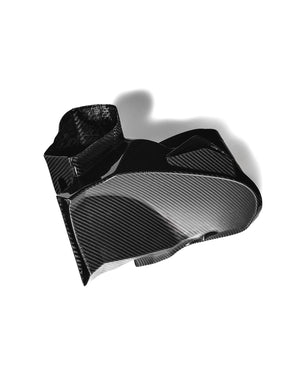

We have spent a significant amount of time designing our air ducts and optimising them beyond the norm by having three cold air feeds.
The result is a system which matches the factory intake system for inlet temperatures.
FRONT
LOWER
SIDE
High Flow Air Filters & Intake Temperatures
Our bespoke short stack high surface area filter larger than any cone filter design currently on offer on the market with a huge opening of 170mm (6 3/4") and is designed to take full advantage of the intake tubes by altering the direction of the airflow towards the outer walls. By placing the air filters in front of the inlet tube we achieve the largest velocity stack.
PERFORMANCE TESTING

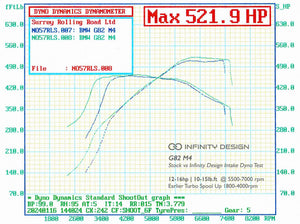

Dyno tests were performed under strict controlled conditions on an independent Dyno Dynamics machine in order to show a true and realistic result.
A healthy and genuine increase of 12-16hp | 10-15 lb.ft from 5500-7000rpm with a much faster turbo spool up time at lower rpm with a small increase in midrange power from 4200-5000rpm.The results shown are the highest stock result (run 7) vs the first run immediately after fitting the intake (run 8).

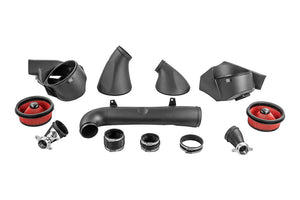

What is in the Box
2 x Enlarged Turbo Inlets
2 x Venturi Inlet Tubes
1 x Frontal Right Air Tube
2 x Air Filter Housing / Inlet Ducts
2 x Bespoke Infinity Design Air Filters
2 x Black metal clamps
3 x Silicone Joiner with Clamps
