Design
For the A90 Supra B58 we have taken full advantage of improving the intake system with a large volume airbox combined with our venturi intake tube and high flow 170mm air filter.
Based on the the same principles as all of our intakes it delivers a vastly improved throttle response and power throughout the rpm range.

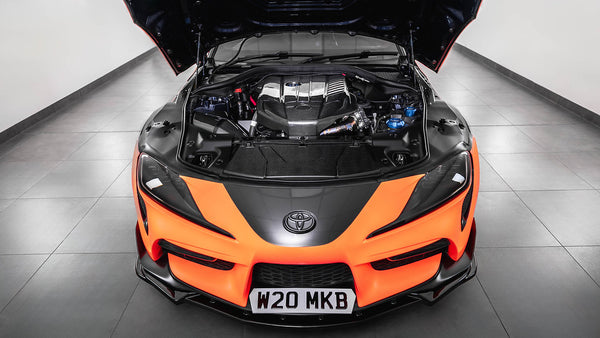

This design strategy ensures the maximum amount of air at the lowest possible intake temperature. The final result is a stunning under bonnet appearance matched with a more eager and smoother throttle response. More torque available faster and an intake sound which is sophisticated under load.
Triple AIR FEEDS
We have spent a significant amount of time designing our air ducts and optimising them beyond the norm by having 3 cold air feeds.
The result is a system which matches the factory intake system for inlet temperatures and allowing in more air.

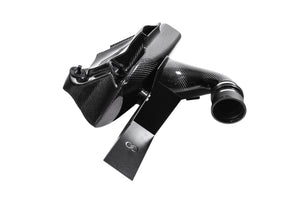

Lower

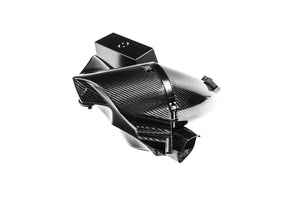

Front

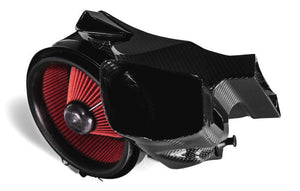

High Flow Air Filters & Intake Temperatures
Our bespoke short stack high surface area filter larger than any cone filter design currently on offer on the market with a huge opening of 170mm (6 3/4") and is designed to take full advantage of the intake tubes by altering the direction of the airflow towards the outer walls. By placing the air filters in front of the inlet tube we achieve the largest velocity stack.

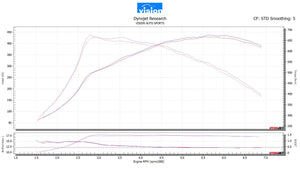

PERFORMANCE TESTING
Dyno tests were performed under strict controlled conditions on an independent Dynojet machine in order to show a true and realistic result.
A healthy and genuine increase of 12-16hp | 10-15 lb.ft.
Boost increased early show the effects of the smooth airflow the system provides.

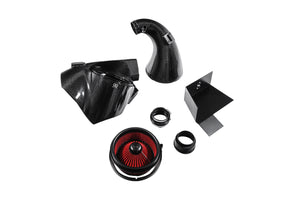

What is in the Box
1 x Venturi Inlet Tube
1 x Frontal Right Air Tube
1 x Air Filter Housing / Inlet Duct
1 x Bespoke Infinity Design Air Filter
1 x Black CNC Turbo Adapter
1 x Silicone Joiner with Clamps
